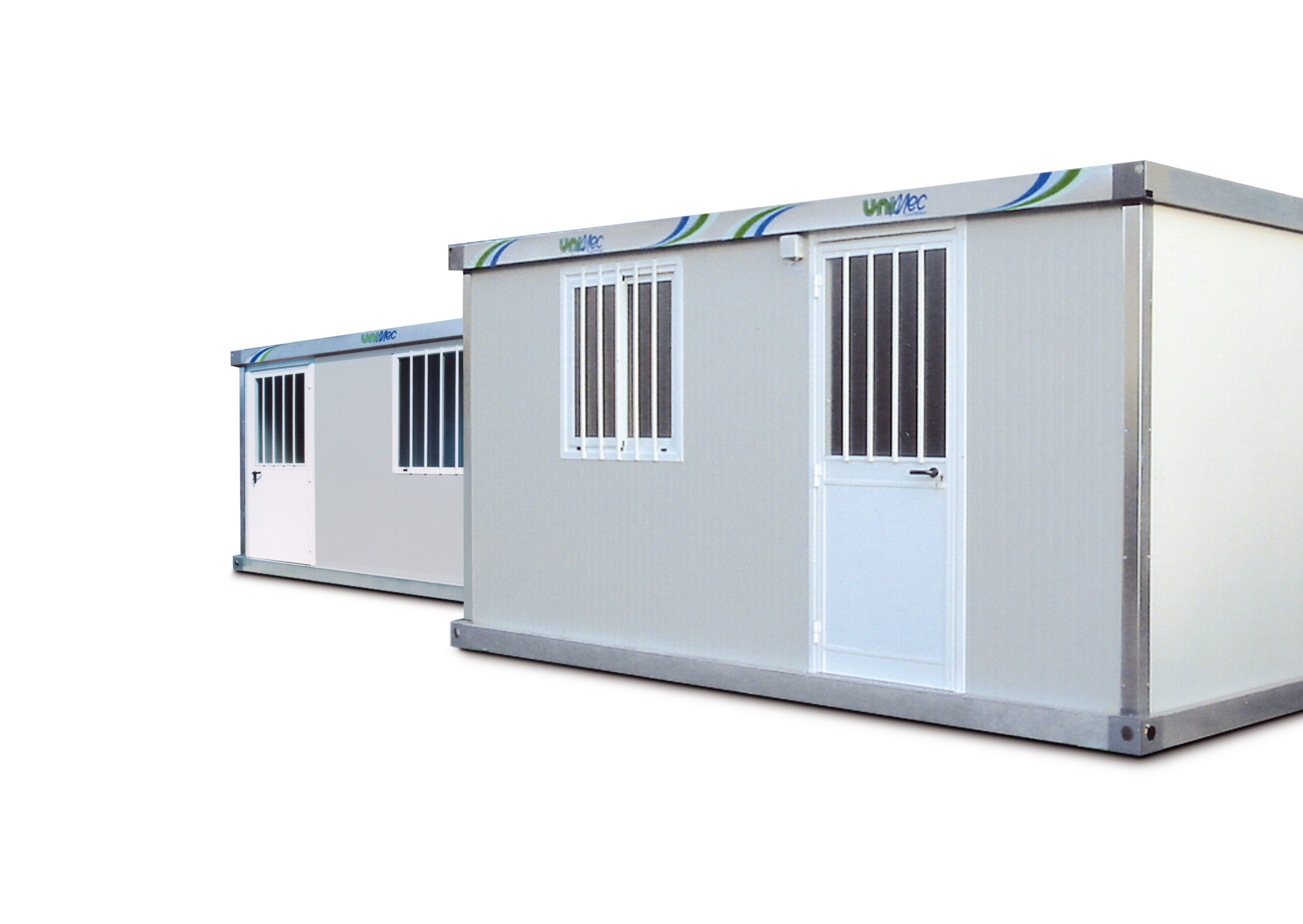

UNIMEC FG12Z
Insulated Cabin
Reinforced Monoblock Insulated Cabin (Reinforced Model)
The UNIMEC FG12Z is a reinforced insulated monoblock prefabricated cabin designed for use in demanding construction site and industrial environments. Its reinforced frame structure and heavy-duty steel construction ensure increased durability, stability, and long service life, even under harsh working conditions.
The cabin frame is made from high-strength galvanized steel tubes, featuring special corner reinforcements and eight support points for safe placement and transportation. The side panels are insulated with a 40 mm polyurethane (PUR) core, providing excellent thermal insulation and protection against moisture and weather conditions.
The cabin design also includes a water drainage and anti-penetration protection system, where rainwater is directed underneath the floor at a distance of approximately 17 cm, preventing moisture from entering the interior.
The FG12Z is an ideal solution for construction sites, industrial facilities, and technical projects where a durable and reliable workspace or storage area is required.
Advantages
- Reinforced steel construction for demanding working conditions
- High-performance PUR polyurethane insulated panels
- Increased resistance during transportation and daily use
- Water drainage system for moisture protection
- Durable floor with antistatic covering
- Option for complete electrical and plumbing installations
- Long service life with low maintenance requirements
Applications
- Construction site offices
- Staff rooms
- Worker changing rooms
- Construction site storage areas
- Industrial facilities
- Temporary or permanent installations
Technical Specifications
| Model | External Length (Internal) | External Width (Internal) | External Height (Internal) | Weight (kg) |
|---|---|---|---|---|
| FG12 Z30 | 3.00 (2.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 680 |
| FG12 Z40 | 4.00 (3.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 780 |
| FG12 Z50 | 5.00 (4.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 880 |
| FG12 Z60 | 6.00 (5.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 1,030 |
| FG12 Z70 | 7.00 (6.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 1,150 |
| FG12 Z80 | 8.00 (7.80) m | 2.40 (2.20) m | 2.45 (2.15) m | 1,250 |
Construction & Technical Features
Frame
Constructed from high-strength galvanized steel tubes assembled together, featuring eight support points for safe placement and transportation. The external corners are reinforced with steel profiles for increased durability.
Roof
Manufactured from insulated panels similar to the side walls, with corrugated galvanized steel sheet and a water drainage system that creates an air chamber and reduces temperature fluctuations.
Floor
Made from 18 mm waterproof wooden panels reinforced with galvanized steel profiles and covered with antistatic linoleum. An insulated floor option is also available.
Side Panels
Constructed from insulated panels with a steel frame and 40 mm polyurethane (PUR) core, featuring an external steel sheet coated with a 0.5 mm coil coating paint system.
Electrical Installation
The cabin electrical installation is manufactured according to current regulations and may include:
- Lighting point
- Power outlet
- Thermal magnetic protection switch
- Junction box for network connection
Optional Equipment
Upon request, the cabin can be equipped with:
- Internal partitions
- Different frame types and dimensions
- Toilet and sanitary equipment
- Ventilation system
- Air conditioning
- Special interior equipment
Optional Height
Available upon request:
- Internal height: 2.85 m
- External height: 3.05 m
